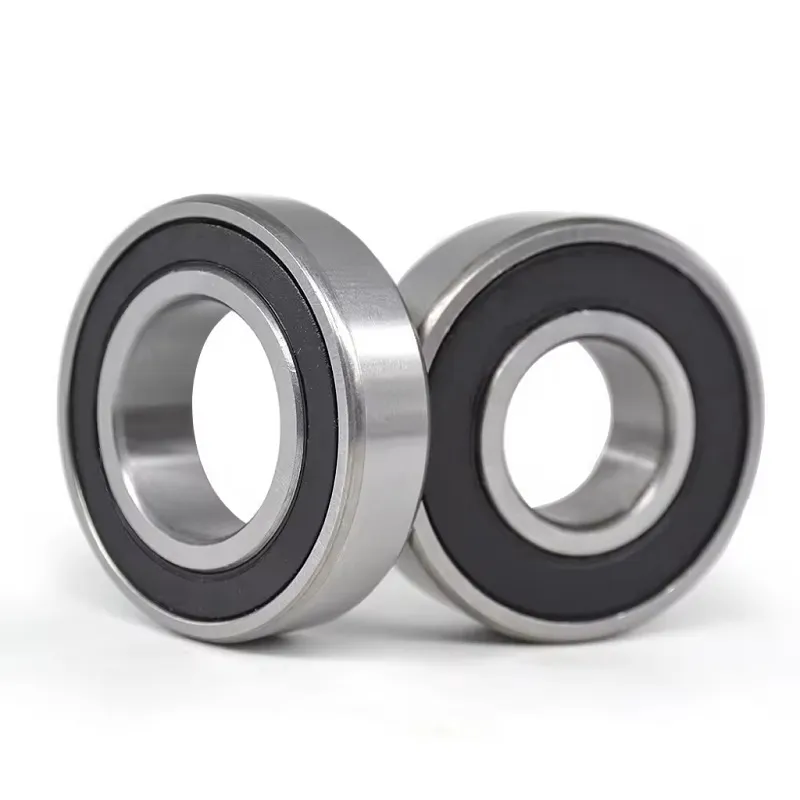

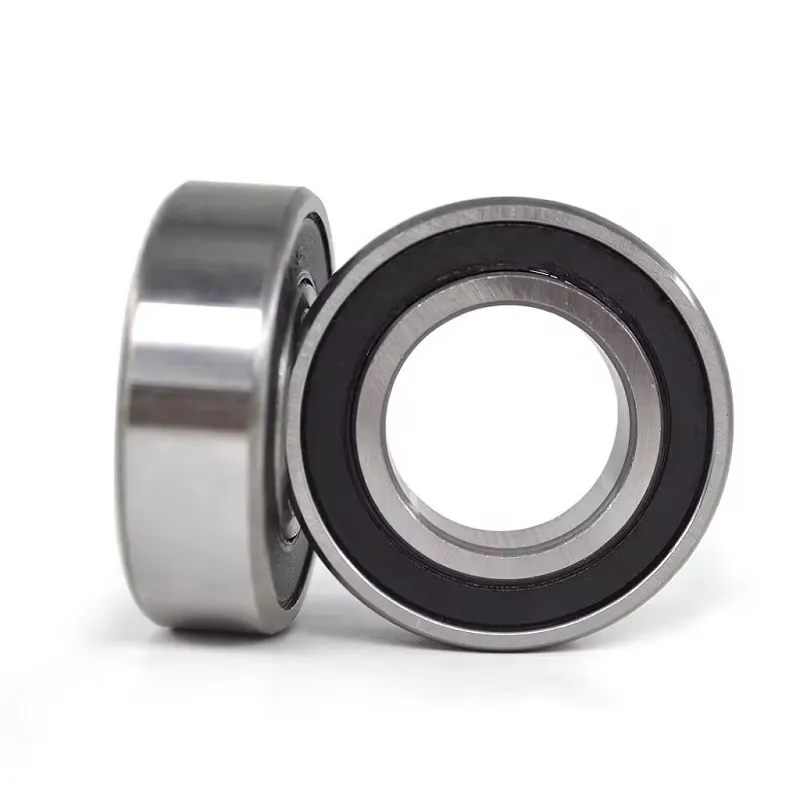

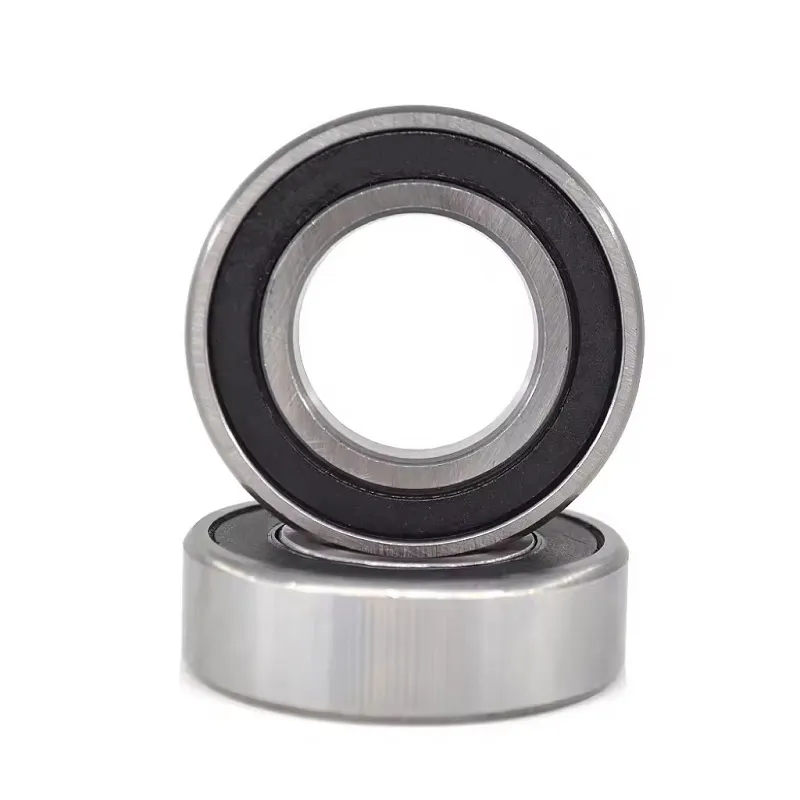

6303 2RS High Quality Deep Groove Ball Bearing 17X47X14

pdf-ə endir

Təfərrüatlar

Teqlər

Deep groove ball bearing 63, single row, steel sheet metal cage

d
17 mm
 Bore diameter
D
47 mm
 Outside diameter
B
14 mm
 Width
Cr
14.400 N
 Basic dynamic load rating, radial
C0r
6.500 N
 Basic static load rating, radial
Cur
435 N
 Fatigue load limit, radial
nG
22.300 1/min
 Limiting speed
nϑr
15.900 1/min
 Reference speed
≈m
0,112 kg
 Çəki
da min
22,6 mm
 Minimum diameter shaft shoulder
Da max
41,4 mm
 Maximum diameter of housing shoulder
ra max
1 mm
 Maximum fillet radius
rmin
1 mm
 Minimum chamfer dimension
D1
37,87 mm
 Shoulder diameter outer ring
D2
39,28 mm
 Caliber diameter outer ring
d1
26,2 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
f0
12,2
 Calculation factor



High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
